Sound and Voice Effects
Sound plays an important role in the user experience by adding another layer of depth; making for a more realistic experience. http://www.robotoid.com/sound/soundingoff-sounds.html
- Arduino and piezo ~ dual purpose can make sound or be used as a vibration sensor
- Low-cost option - WT588D ~ $5
- Other options include the Adafruit Audio sound board $20 and mini computer systems on a board, such as Raspberry Pi or similar $30+. These devices also need an SD card to provide memory space, are more sensitive to vibrations, and use more power.
SoundFX Lightshow
Using an Arduino Nano on an expansion board with push-buttons, one to play a sound and the other to select a sound effect from a WT588D through a speaker.
WT588D Sound Module

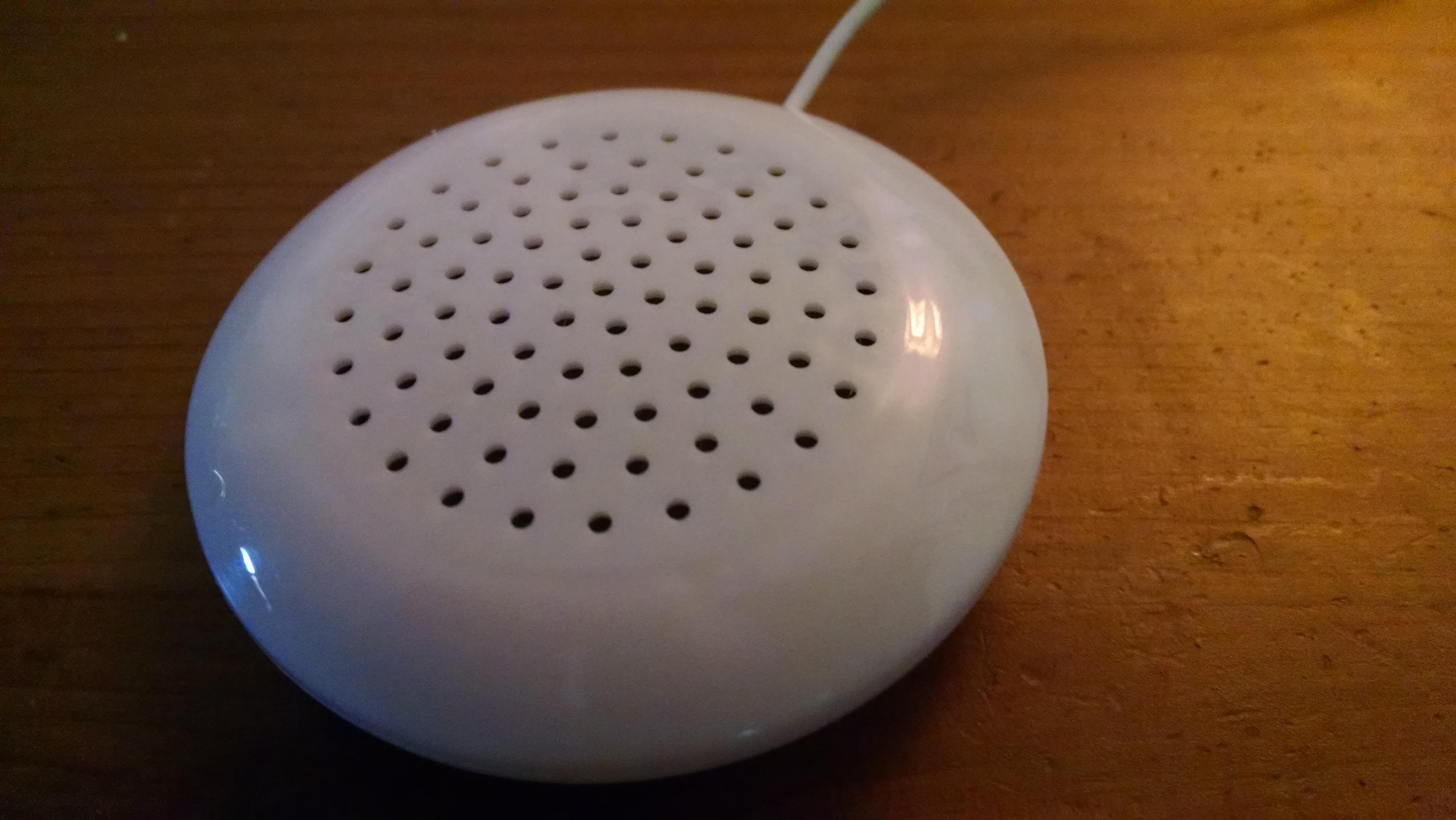

For this project, I selected a low-cost option with internal memory and reasonable sound quality - WT588D-U. This model includes a built-in mini USB port for power and direct programming. Sound output is amplified by the module and produced by a standard 0.5w 8-ohm speaker, or can be connected to an amplified speaker system. The downside with this module is that it can be difficult to get the programming software and drivers installed and configured.
Using the WT588D voice module connected to a basic speaker, the project can deliver cellular phone quality sound.
More information and tutorials specific to the WT588D:
- https://www.instructables.com/id/WT588D-Standalone-Arduino-sound-player/
- http://www.ars-informatica.ca/eclectic/programming-the-wt588d-sound-module-part-1/
- https://www.instructables.com/id/Getting-the-Most-Out-of-a-WT588D-Sound-Module/
There are several options for triggering a sound clip. The documentation for this module includes a schematic showing a few modes. If there are only a few sounds that need to be triggered, then the direct button mode works without a microcontroller. However, if there are several sound clips, it takes just as many wires to connect to a microcontroller using the following 3-wire configuration.
I've taken the time to download sound clips, modify, and organize a few themes:
- Games - sound effects for the mechanics and animation, GLaDoS voices from the Portal video game
- Spooky - selection of spooky sounds for Halloween projects
- LCARS - Star Trek computer phrases and sounds
- Zelda: Link To The Past - sounds from the video game
Other themes online:
Alien Invasion Slot Machine uses the WT588D board for sound effects.
Parts:
- Arduino Nano
- Expansion Board
- USB to mini USB ~ 5ft. cord
- AC/DC Outlet Power Adapter
- Project Box
- WT588D Sound Module
- 8 x 7-segment Display module
- (1-4) strips of 10 RGB 12mm LEDs
- (2) push-buttons
- photocell
- microphone
- PIR sensor
Steps:
Prepare the following for wiring and connect to the expansion board:
- WT588D with wiring harness and speaker
- (1-4) strips of 10 RGB 12mm LEDs
- 8 x 7-segment Display Module
- (2) push-buttons
- photocell
- microphone
- PIR sensor

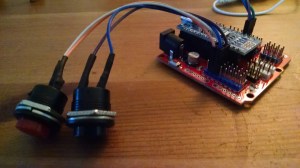

Connect the push-buttons to the expansion board and upload test code.
Connect the WT588D with wiring harness and speaker and upload test code.
Any sensor can be used to trigger specific or random sounds and going even further, a basic neural network could make decisions using multiple sensor inputs.

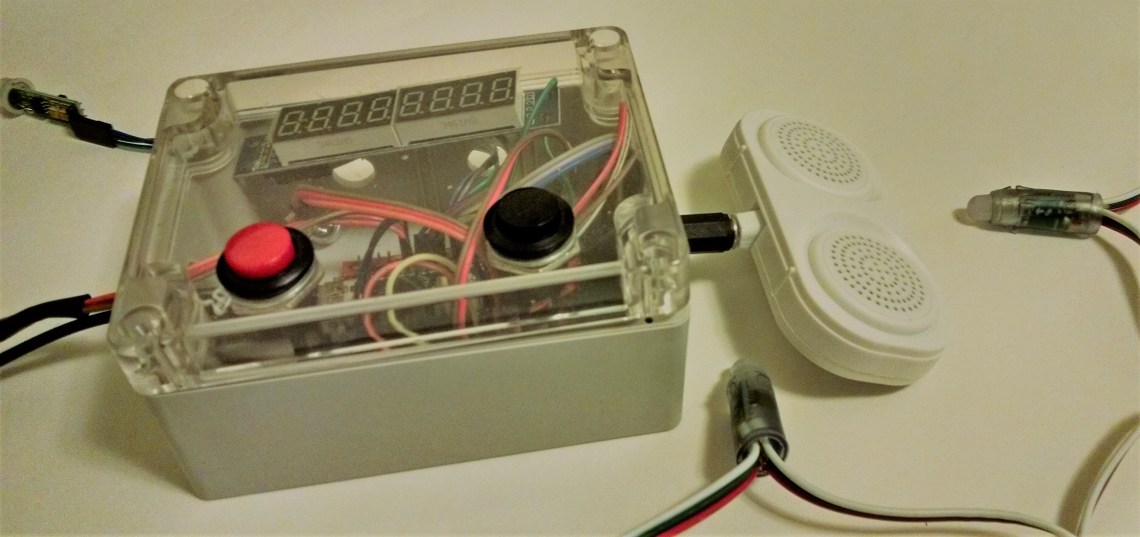

Completed SoundFX Light Project
Insert Arduino Nano into Expansion Board and provide power using USB to mini USB cord. Optionally, use AC/DC Outlet Power adapter.
Enclosing the Project
Drill 7/16" - 1/2" holes into the project box:
- HOLE 1 (side): USB to mini USB ~ 5ft. cord (optionally, AC/DC Outlet Power Adapter)
- HOLE 2: cover push-button
- HOLE 3: cover push-button
- top front side:
- HOLE 4: (1-4) strips of 10 RGB 12mm LEDs
- HOLE 5: speaker connector
- HOLE 6 (side): microphone, PIR sensor
Arduino Pro-Mini directly connected to WT588D
